3D Hip Implant Design for Personalized Treatment

This project presents a novel approach for optimized patient-specific hip implant designs using Fusion 360. The implant design was based on the scanned 3D geometry of a femur and hip bone.

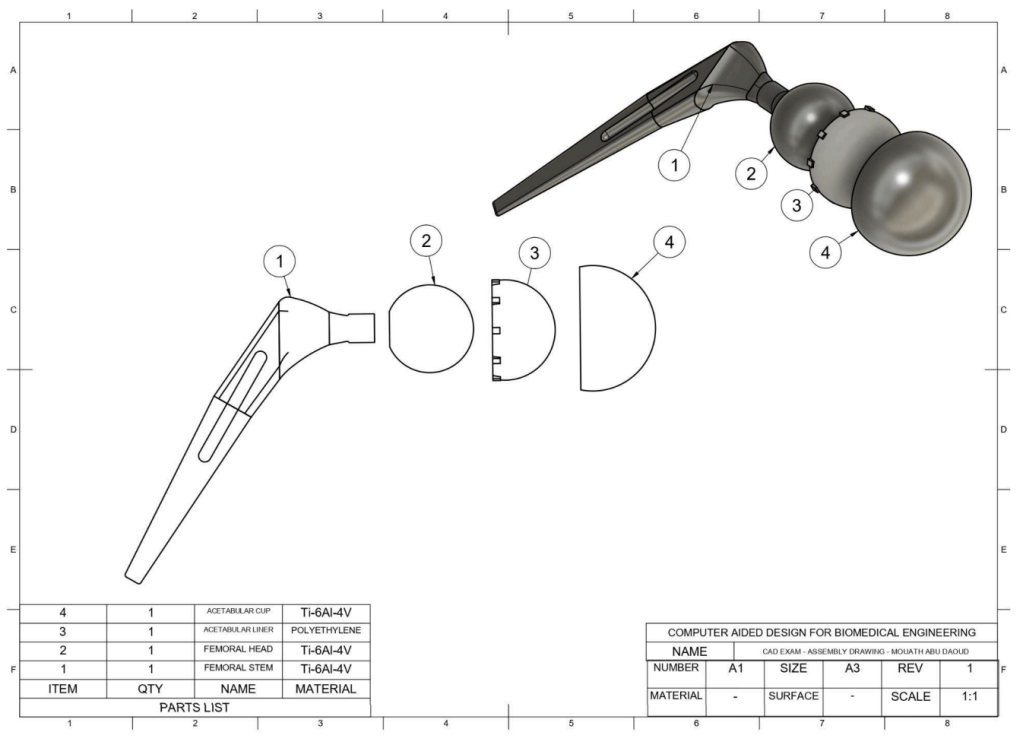

Figure 1 – Hip Implant Assembly

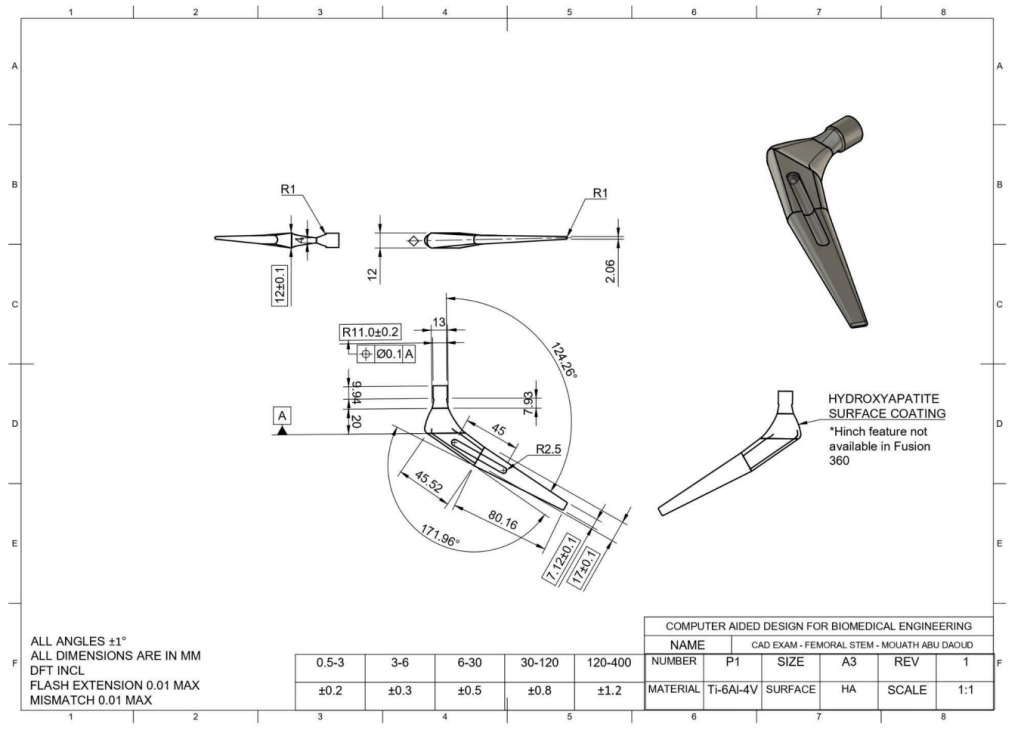

Figure 2 – Femoral Stem 2D Sketch

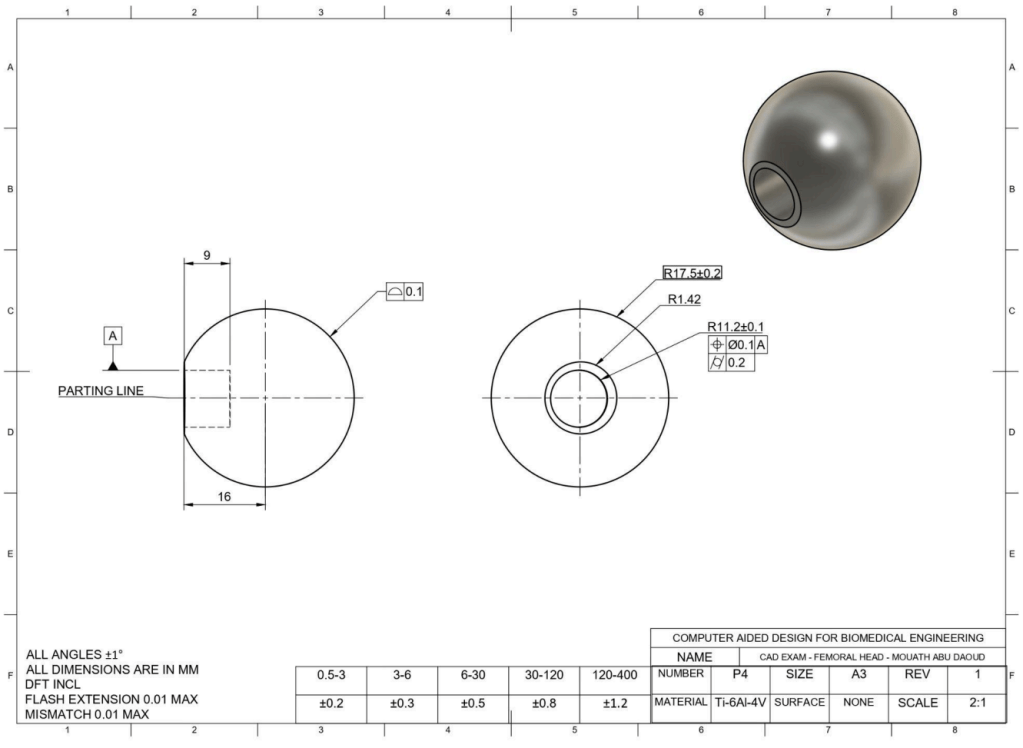

Figure 3 – Femoral Head 2D Sketch

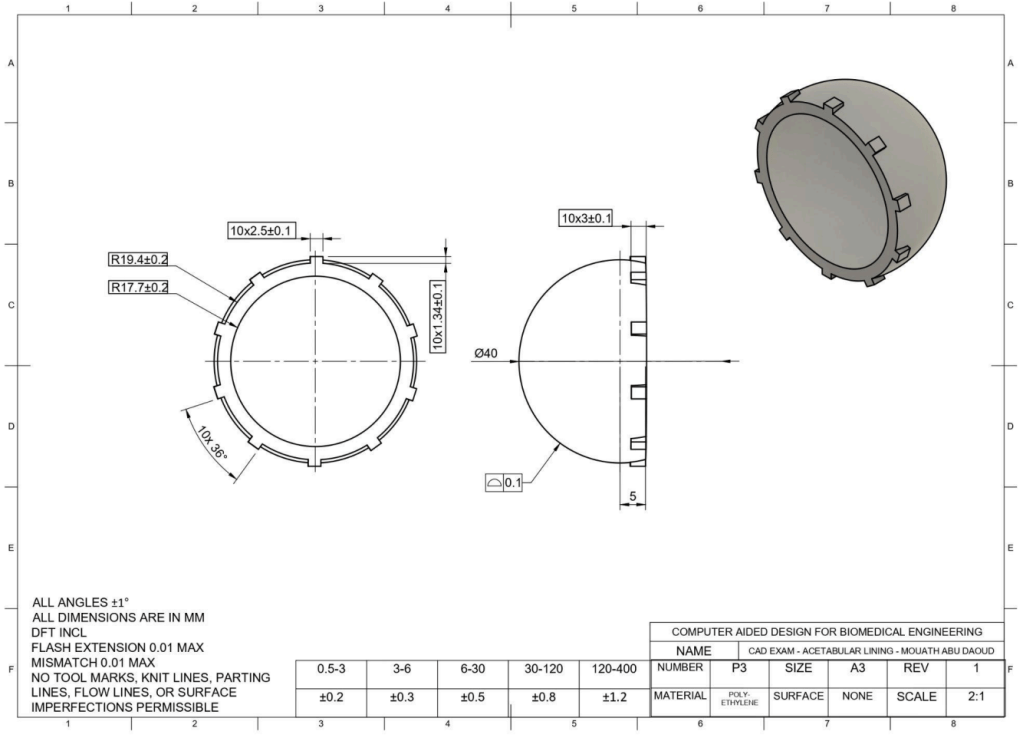

Figure 4 – Acetabular Lining 2D Sketch

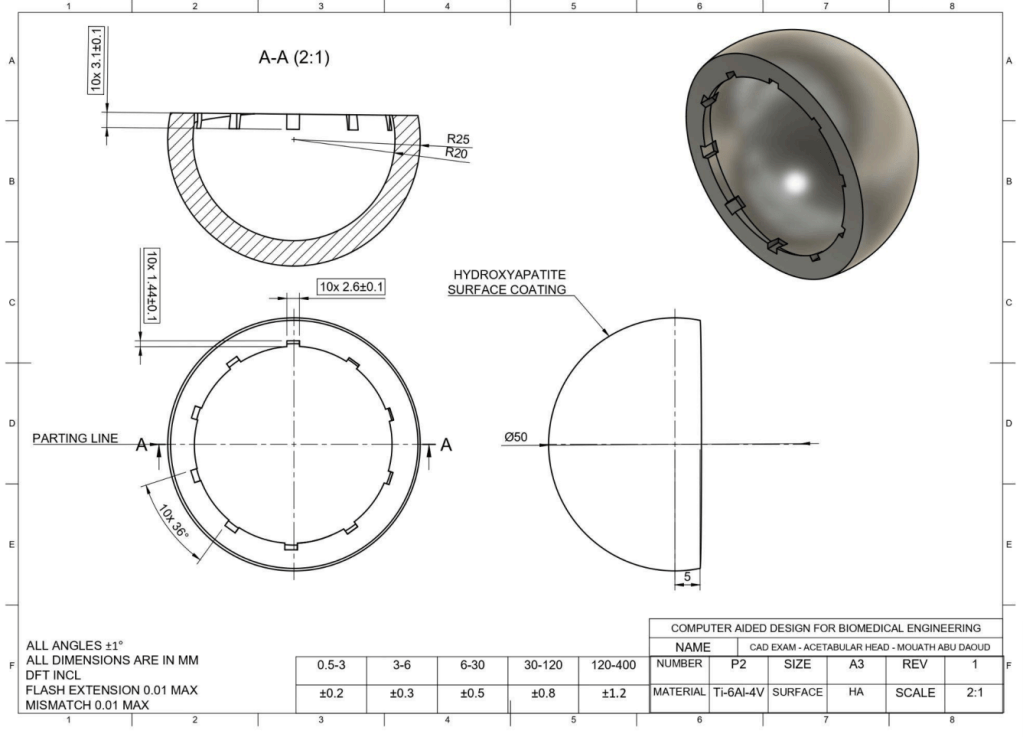

Figure 5 – Acetabular Head 2D Sketch
